• OB2012 medical suction unit equipped with:
  • OB-J collection jar for 1000 ml SERRES® disposable bags

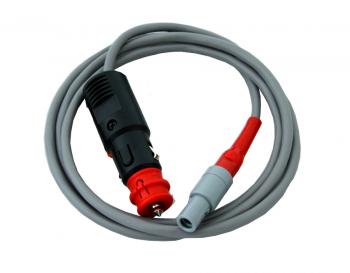

  • recharging cable complete with cigarette lighter plug and two-pole connector
• Nominal suction power: 800 mbar (80 kPa) ±10%
• Nominal suction flow: 30 LPM at free air speed ±10%
• Maximum operating time (free-cycle): 60 minutes ±10%
• Degree of protection against infiltration of liquids and solids: IP34d
• Functioning/charge: 12÷15 Vdc
• Maintenance-free piston pump
• Sealed lead-acid battery
• The suction unit can be equipped with an OB WB charging bracket (in accordance with EN 1789) and an external mains-voltage power supply with two-pole plug (mains power supply between 100 and 240 Vac)
• Dimensions: 350x240x120 mm
• Weight: 4.6 kg complete with accessories, without support bracket
• Class IIa medical device in compliance with Regulation (EU) 2017/745 (MDR), all applicable regulations and main reference standards

DIR/QM – Rev. 02_12/06/2023
